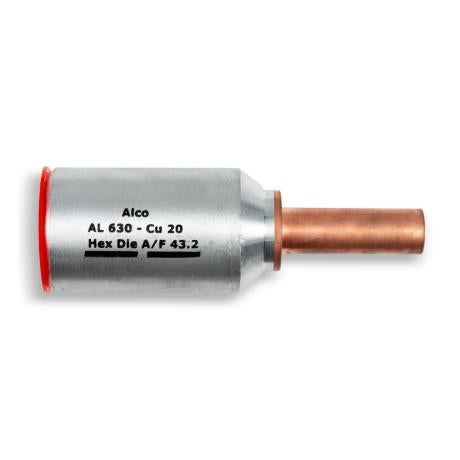

Crimp Lug Bi-Metal Aluminium 630mm² | Copper Stalk 20mm | Friction Welded | Pre-Greased | by Wattmaster
The Crimp Lug Bi-Metal Aluminium 630mm² is designed for reliable electrical terminations, featuring a 20mm copper stalk and friction welded construction. Ideal for industrial and commercial applications, this lug ensures secure connections with high purity materials, reducing energy loss and extending product life. Perfect for use with standard Australian hex crimp dies, it meets AS/NZS compliance standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium 630mm² | Copper Stalk 20mm | Friction Welded | Pre-Greased | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS630-20
Alternatively Known As: Bi-metal crimp lug, Aluminium copper crimp lug, Bi-metallic cable lug, Electrical crimp connector
Technical Specifications
- Conductor Size: 630mm² aluminum
- Copper Stalk Diameter: 20mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductor sizes >10mm²
- Compatibility: Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.5 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate installation
- Hi purity aluminum 99.6% and ETP copper 99.9%
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- Complies with AS/NZS 4325.1:1995 (cl7) for conductor sizes >10mm²
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metallic lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for cable lugs and connectors
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium 630mm² Copper Stalk 20mm is available for immediate purchase, ideal for electrical termination applications in industrial and commercial settings.
