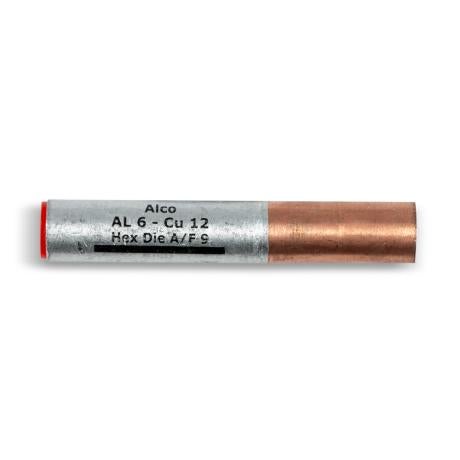

Crimp Lug Bi-Metal Aluminium 6mm² | Copper Stalk Diameter 12mm | Friction Welded | Pre-Greased | by Wattmaster
The Crimp Lug Bi-Metal Aluminium 6mm² is designed for reliable electrical connections, featuring a 12mm copper stalk diameter and friction welded construction. Ideal for industrial, commercial, and residential electrical wiring, this lug ensures secure terminations of aluminum conductors to copper busbars. With high purity materials and pre-greased barrels to reduce corrosion, it’s perfect for applications requiring bi-metallic lugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium 6mm² | Copper Stalk Diameter 12mm | Friction Welded | Pre-Greased | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS6-12
Alternatively Known As: Bi-metallic crimp lug, Aluminum copper crimp connector, Bi-metal lug 6mm², Electrical crimp terminal lug
Technical Specifications
- Conductor Size: 6mm² aluminum
- Copper Stalk Diameter: 12mm
- Material: High purity aluminum 99.6%, ETP copper 99.9%
- Connection Type: Friction welded bi-metallic crimp lug
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate installation
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- High purity aluminum (99.6%) and ETP copper (99.9%) materials
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools (6 ton or 12 ton Australian hex crimp dies) is recommended to ensure secure and compliant connections.
Applications
- Termination of aluminum and aluminum alloy conductors to copper busbars and terminals in electrical installations
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium 6mm² with Copper Stalk Diameter 12mm is available for immediate purchase, ideal for electrical termination applications requiring reliable bi-metallic connections.
