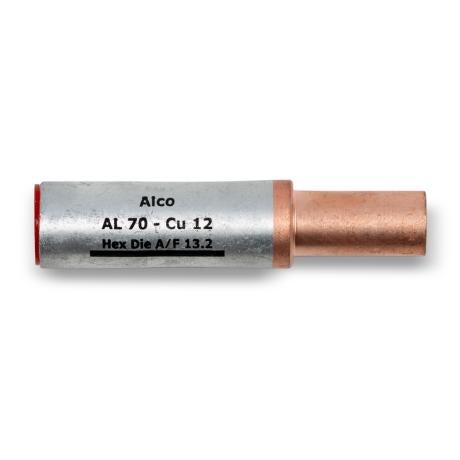

Crimp Lug Bi-Metal Aluminium 70mm² | Copper Stalk 12mm | Friction Welded | Pre-Greased | by Wattmaster
The Crimp Lug Bi-Metal Aluminium 70mm² is designed for reliable electrical connections, featuring a 12mm copper stalk and friction welded construction. Ideal for industrial, commercial, and residential electrical terminations, this lug ensures compliance with AS/NZS standards and is compatible with standard Australian hex crimp dies. Its pre-greased aluminum barrels reduce corrosion, enhancing durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium 70mm² | Copper Stalk 12mm | Friction Welded | Pre-Greased | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS70-12
Alternatively Known As: Bi-metal crimp lug, Aluminum copper crimp lug, Bi-metallic cable lug, Electrical crimp connector
Technical Specifications
- Conductor Size: 70mm² aluminum
- Copper Stalk Diameter: 12mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate installation
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- High purity aluminum (99.6%) and ETP copper (99.9%) materials
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools (6 ton or 12 ton Australian hex crimp dies) is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial, commercial, and residential electrical installations requiring bi-metallic lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for bi-metallic cable lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium 70mm² Copper Stalk 12mm is available for immediate purchase, ideal for electrical termination in industrial, commercial, and residential applications.
