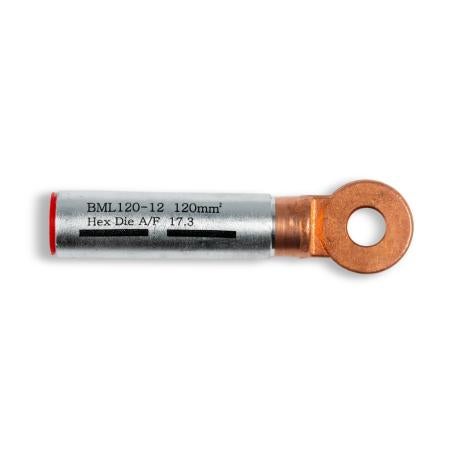

Crimp Lug Bi-Metal Aluminium To Copper | 120mm² | M12 Stud | High Purity Materials | by Wattmaster
The Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical connections, featuring a 120mm² conductor size and M12 stud compatibility. Built with high purity materials (99.6% aluminum and 99.9% ETP copper), it ensures optimal performance in industrial, commercial, and residential wiring applications. Ideal for qualified electricians, this lug is perfect for terminating aluminum conductors to copper busbars.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium To Copper | 120mm² | M12 Stud | High Purity Materials | by Wattmaster
Brand: Wattmaster
SKU: ALCLCA120M12
Alternatively Known As: Bi-metal crimp lug, Aluminum to copper crimp connector, Bi-metallic cable lug, Electrical crimp lug 120mm²
Technical Specifications
- Conductor Size: 120mm²
- Stud Size: M12
- Material: Bi-metallic aluminum and copper
- Aluminum Purity: 99.6%
- Copper Purity: 99.9% ETP
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Termination of aluminum and aluminum alloy conductors to copper busbars and terminals in electrical installations
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- Use of high purity recyclable metals supports sustainable electrical installations
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 120mm² M12 Stud is available for immediate purchase, ideal for electrical wiring requiring reliable bi-metallic connections.
