Trade Discount 17%

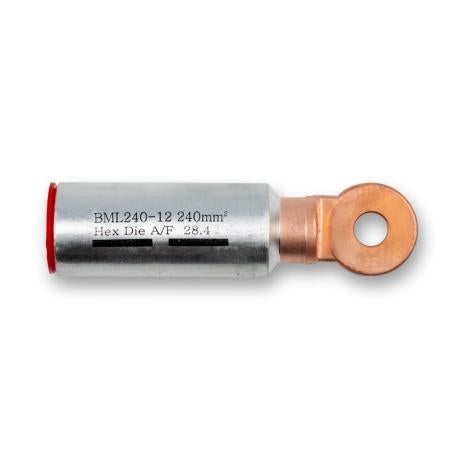

Crimp Lug Bi-Metal Aluminium To Copper | 240mm² | M12 Stud | Friction Welded | by Wattmaster
The Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical connections, featuring a 240mm² conductor size and M12 stud compatibility. Ideal for industrial and commercial electrical installations, this lug ensures secure terminations with its friction welded design and pre-drilled copper palms for easy installation. Built with high purity materials, it reduces energy loss and extends product life, making it a perfect choice for electrical contractors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium To Copper | 240mm² | M12 Stud | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCA240M12
Alternatively Known As: Bi-metal crimp lug, Aluminium to copper crimp connector, Bi-metallic lug, Electrical crimp lug 240mm², M12 stud lug
Technical Specifications
- Conductor Size: 240mm²
- Stud Size: M12
- Material: Bi-metal - Aluminum (99.6%) and Copper (99.9%)
- Connection Type: Crimp lug with friction weld
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty coverage subject to manufacturer terms and conditions; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 240mm² M12 Stud is available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable bi-metallic connections.
