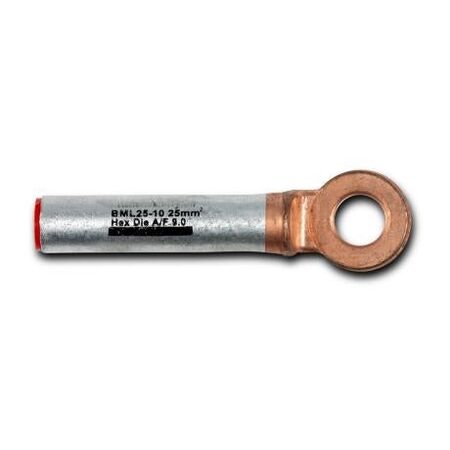

Crimp Lug Bi-Metal Aluminium To Copper | 25mm² | M10 Stud | Friction Welded | by Wattmaster
The Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical connections, featuring a 25mm² conductor size and M10 stud compatibility. Ideal for industrial, commercial, and residential wiring, this lug ensures secure terminations with its high purity aluminum and ETP copper construction, while pre-greased barrels reduce corrosion for enhanced longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium To Copper | 25mm² | M10 Stud | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCA25M10
Alternatively Known As: Bi-metal crimp lug, Aluminum to copper crimp connector, Bi-metallic lug 25mm², M10 stud lug
Technical Specifications
- Conductor Size: 25mm²
- Stud Size: M10
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Connection Type: Bi-metal friction welded lug
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- Hi purity aluminum 99.6% and ETP copper 99.9%
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Termination of aluminum and aluminum alloy conductors to copper busbars and terminals in electrical installations
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- Enables efficient electrical connections that minimize energy loss
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 25mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and busbar termination applications.
