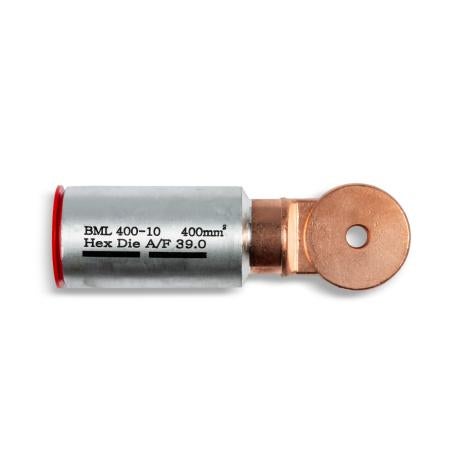

Crimp Lug Bi-Metal Aluminium To Copper | 400mm² | M10 Stud | Friction Welded | by Wattmaster
The Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical terminations, featuring a 400mm² conductor size and M10 stud for secure connections. Made from high-purity aluminum (99.6%) and copper (99.9%), this lug is ideal for industrial and commercial applications, ensuring efficient conductivity and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium To Copper | 400mm² | M10 Stud | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCA400M10
Alternatively Known As: Bi-metal crimp lug, Aluminum to copper crimp connector, Bi-metal lug 400mm², M10 stud lug
Technical Specifications
- Conductor Size: 400mm²
- Stud Size: M10
- Material: Bi-metal friction welded aluminum and copper
- Aluminum Purity: 99.6%
- Copper Purity: 99.9%
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.3 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- Hi purity aluminum 99.6% and ETP copper 99.9%
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metal connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metal lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 400mm² M10 Stud is available for immediate purchase, ideal for electrical termination in industrial and commercial applications.
