Trade Discount 17%

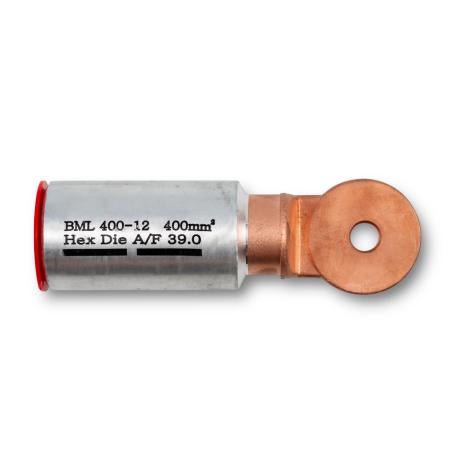

Crimp Lug Bi-Metal Aluminium To Copper | 400mm² | M12 Stud | Friction Welded | by Wattmaster
Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical terminations, featuring a 400mm² conductor size and M12 stud compatibility. Built with high purity aluminum (99.6%) and copper (99.9%), this lug ensures efficient conductivity and is ideal for industrial and commercial applications requiring bi-metal lugs. Pre-greased aluminum barrels reduce corrosion, extending product life and enhancing performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium To Copper | 400mm² | M12 Stud | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCA400M12
Alternatively Known As: Bi-metal crimp lug, Aluminum to copper crimp lug, Bi-metallic lug, Electrical crimp connector, Bi-metal lug 400mm²
Technical Specifications
- Conductor Size: 400mm²
- Stud Size: M12
- Material: Bi-metal friction welded aluminum and copper
- Aluminum Purity: 99.6%
- Copper Purity: 99.9%
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 20mm x 120mm x 60mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate crimping
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- High purity aluminum (99.6%) and ETP copper (99.9%)
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metal lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
Available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable aluminum to copper conductor terminations.
