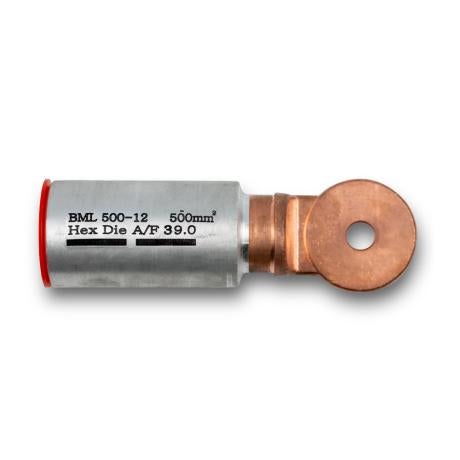

Crimp Lug Bi-Metal Aluminium To Copper | 500mm² | M12 Stud | Friction Welded | by Wattmaster
The Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical terminations, featuring a 500mm² conductor size and M12 stud compatibility. Ideal for industrial and commercial applications, this crimp lug ensures secure connections with high purity materials, reducing energy loss and extending product life through corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium To Copper | 500mm² | M12 Stud | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCA500M12
Alternatively Known As: Bi-metal crimp lug, Aluminum to copper crimp connector, Bi-metal cable lug, Electrical crimp lug 500mm²
Technical Specifications
- Conductor Size: 500mm²
- Stud Size: M12
- Material: Bi-metal (Aluminum 99.6% and ETP Copper 99.9%)
- Termination Type: Crimp lug
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 20mm x 120mm x 60mm
- Weight: 0.3 kg
Key Features
- Friction welded aluminum/copper crimp lugs
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial and commercial electrical installations requiring bi-metal connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 500mm² M12 Stud is available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable bi-metal connections.
