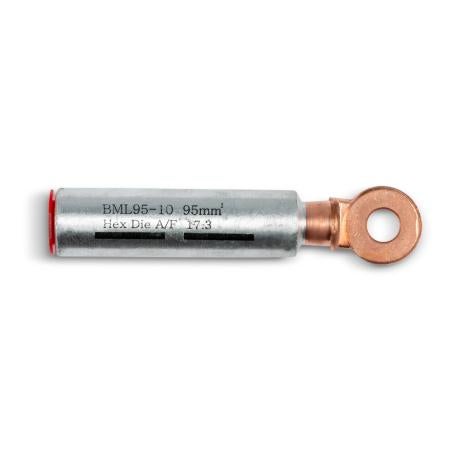

Crimp Lug Bi-Metal Aluminium To Copper | 95mm² M10 Stud | Friction Welded & Pre-Greased | by Wattmaster
The Crimp Lug Bi-Metal Aluminium To Copper is designed for reliable electrical connections, featuring a 95mm² conductor size and M10 stud. Ideal for industrial, commercial, and residential wiring, this lug ensures efficient conductivity with high purity materials and pre-greased barrels to reduce corrosion. Perfect for use with standard Australian hex crimp dies, it guarantees secure and compliant terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Bi-metal - Aluminum (99.6%) and ETP Copper (99.9%)
- Conductor Size: 95mm²
- Stud Size: M10
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-drilled copper palms for easy installation
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper crimping
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- High purity materials: 99.6% aluminum and 99.9% ETP copper
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Termination of aluminum and aluminum alloy conductors to copper busbars and terminals in electrical installations
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium To Copper 95mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and termination applications requiring bi-metallic connections.
