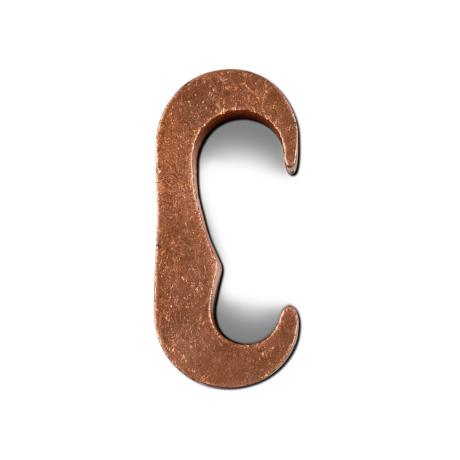

Crimp Lug C-Connector Universal 16/70mm² to 95/120mm² | 99.9% Pure Copper | Direct Burial Compatible | by Wattmaster
The Crimp Lug C-Connector Universal 16/70mm² to 95/120mm² is designed for reliable electrical bonding and conductor joining. Made from 99.9% pure copper, it ensures excellent conductivity and durability, suitable for direct burial applications. Ideal for professional electricians, this connector is compatible with Alco, Cabac, and Burndy C-Connector Dies, making it a versatile choice for various electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug C-Connector Universal 16/70mm² to 95/120mm² | 99.9% Pure Copper | Direct Burial Compatible | by Wattmaster
Brand: Wattmaster
SKU: ALCCM70120
Alternatively Known As: Copper C-Connector Lug, Universal Crimp Lug, Electrical Bonding Connector, Copper Crimp Lug
Technical Specifications
- Material: 99.9% pure copper
- Conductor Size Range: 16/70mm² to 95/120mm²
- Compatible with Alco, Cabac, and Burndy C-Connector Dies (12t)
- Operating Temperature: -55°C to 155°C
- Suitable for direct burial
- Dimensions (H x L x W): 10mm x 80mm x 50mm
- Weight: 0.15 kg
Key Features
- Universal C-connectors for joining and tapping copper conductors
- Suitable for bonding earthing conductors
- Made from 99.9% pure copper
- Compatible with Alco, Cabac and Burndy C-Connector Dies (12t)
- Operating temperature range from -55°C to 155°C
- Suitable for direct burial
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and compliance with electrical standards.
Applications
- Electrical bonding and earthing
- Joining and tapping copper conductors in electrical installations
- Suitable for direct burial applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable 99.9% pure copper, promoting sustainability
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty against defects in materials and workmanship.
Available Now
The Wattmaster Crimp Lug C-Connector Universal 16/70mm² To 95/120mm² is available for immediate purchase, ideal for electrical bonding and conductor joining applications.
