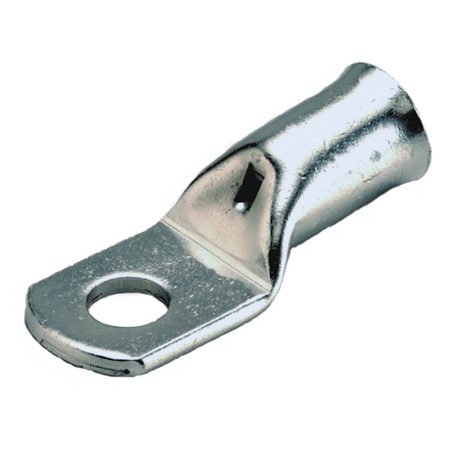

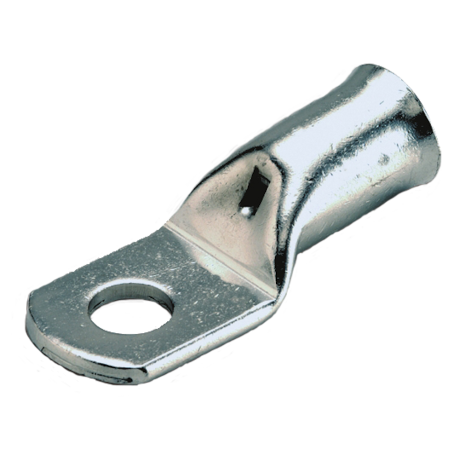

Crimp Lug Copper Bell Mouth Non-Insulated 10mm² M10 Stud | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated 10mm² M10 Stud is designed for reliable electrical connections, featuring an electro tinned finish for high conductivity and an inspection hole for secure crimping verification. Ideal for industrial and commercial electrical installations, this durable lug ensures optimal performance in power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated 10mm² M10 Stud | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM10M10/25
Alternatively Known As: Copper Crimp Lug, Bell Mouth Lug, Non-Insulated Copper Lug, Electrical Cable Lug
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 10mm²
- Stud Size: M10
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for >10mm²
- Includes inspection hole for crimp verification
- Dimensions (H x L x W): 10mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for electrical cable lugs
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 10mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
