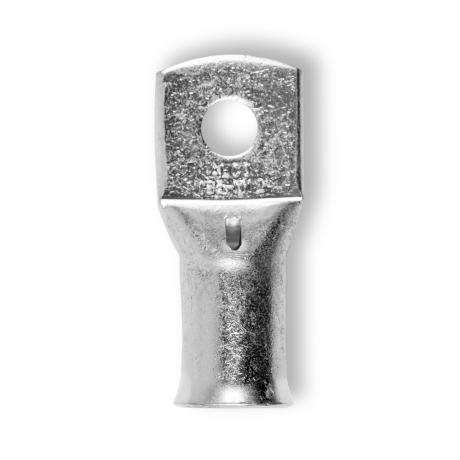

Crimp Lug Copper Bell Mouth Non-Insulated | 185mm² | M12 Stud Hole | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated is designed for reliable electrical connections, featuring a 185mm² size and M12 stud hole. Made from electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for industrial and commercial electrical installations, this lug includes an inspection hole for secure crimp verification, making it perfect for stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated | 185mm² | M12 Stud Hole | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM185M12/6
Alternatively Known As: Copper Crimp Lug, Bell Mouth Copper Lug, Non-Insulated Copper Lug, Electrical Cable Lug 185mm²
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 185mm²
- Stud Hole Size: M12
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Includes inspection hole for crimp quality verification
- Suitable for stranded to fine stranded copper cables
- Dimensions (H x L x W): 10mm x 90mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimp verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs greater than 10mm²
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 185mm² M12 Stud Hole is available for immediate purchase, ideal for electrical wiring and industrial power distribution applications.
