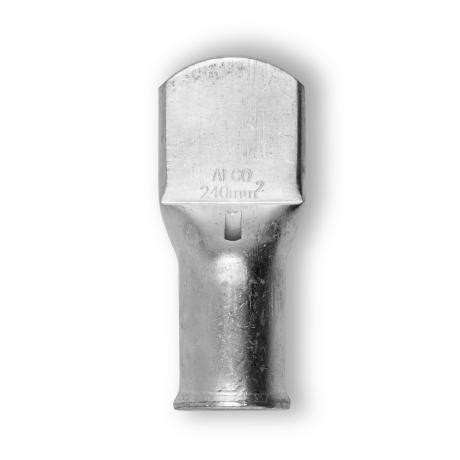

Crimp Lug Copper Bell Mouth Non-Insulated 240mm² | Electro Tinned Finish | Inspection Hole for Connection Verification | by Wattmaster
Crimp Lug Copper Bell Mouth Non-Insulated 240mm² is designed for high conductivity in electrical wiring applications. Made from electro grade copper with an electro tinned finish, it ensures durability and corrosion resistance. Ideal for industrial and commercial power distribution, this lug includes an inspection hole for secure connection verification, making it perfect for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated 240mm² | Electro Tinned Finish | Inspection Hole for Connection Verification | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM240MB/6
Alternatively Known As: Copper Crimp Lug, Bell Mouth Cable Lug, Non-Insulated Copper Lug, 240mm² Copper Cable Lug
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 240mm²
- Type: Bell Mouth, Non-Insulated
- Operating Temperature: -55°C to +155°C
- Includes inspection hole for connection verification
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure connection verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring for industrial and commercial power distribution
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical installations requiring high conductivity and durability
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 240mm² Cable Blank Palm is available for immediate purchase, ideal for electrical wiring and power distribution applications.
