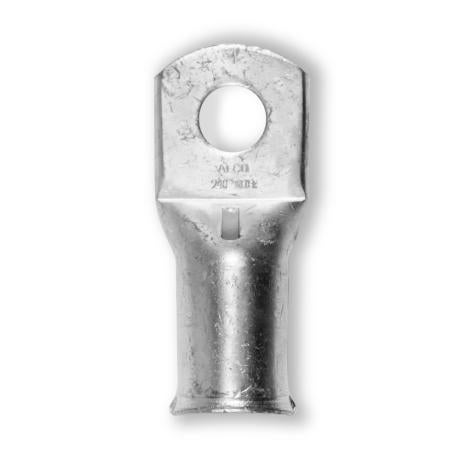

Crimp Lug Copper Bell Mouth Non-Insulated | 240mm² | M16 Stud | High Conductivity | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated is designed for reliable electrical connections, featuring a 240mm² size and M16 stud compatibility. Made from electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for industrial and commercial electrical installations, this lug includes an inspection hole for secure crimping verification, making it perfect for stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated | 240mm² | M16 Stud | High Conductivity | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM240M16/6
Alternatively Known As: Copper Crimp Lug, Bell Mouth Copper Lug, Non-Insulated Copper Lug, Electrical Cable Lug 240mm²
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 240mm²
- Stud Size: M16
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Includes inspection hole for crimp verification
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical lugs
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 240mm² M16 Stud is available for immediate purchase, ideal for electrical and industrial cable connection applications.
