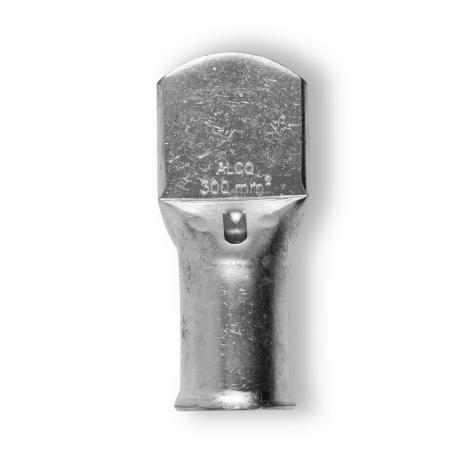

Crimp Lug Copper Bell Mouth Non-Insulated 300mm² | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated 300mm² is designed for high conductivity in electrical wiring, featuring an electro tinned finish and an inspection hole for secure crimp verification. Ideal for industrial and commercial power distribution, this durable copper lug ensures reliable connections for stranded to fine stranded copper cables, operating efficiently in temperatures from -55°C to +155°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated 300mm² | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM300MB/3
Alternatively Known As: Copper Crimp Lug, Bell Mouth Cable Lug, Non-Insulated Copper Lug, 300mm² Copper Cable Lug
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 300mm²
- Type: Non-insulated bell mouth crimp lug
- Operating Temperature: -55°C to +155°C
- Includes inspection hole for crimp verification
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring for industrial and commercial power distribution
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical installations requiring high conductivity and durability
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and reliability
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 300mm² Cable Blank Palm is available for immediate purchase, ideal for electrical wiring and power distribution applications.
