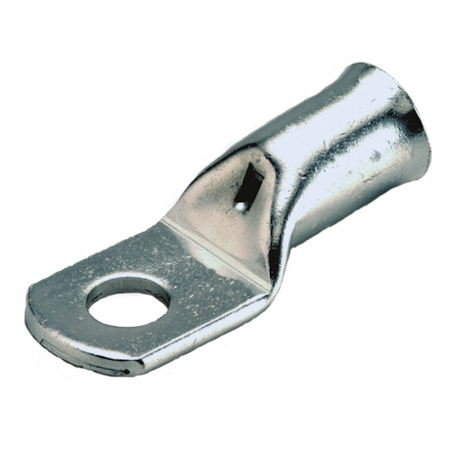

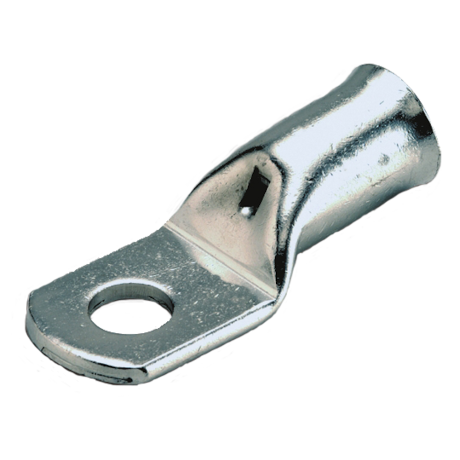

Crimp Lug Copper Bell Mouth Non-Insulated 35mm² M12 Stud | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated 35mm² M12 Stud is designed for reliable electrical connections, featuring an electro tinned finish for high conductivity and an inspection hole for crimp quality verification. Ideal for industrial and commercial electrical installations, it operates effectively in temperatures ranging from -55°C to +155°C, ensuring durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated 35mm² M12 Stud | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM35M12/25
Alternatively Known As: Copper Crimp Lug, Bell Mouth Copper Lug, Non-Insulated Copper Lug, 35mm² Copper Lug with M12 Stud
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 35mm²
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Includes inspection hole for crimp quality verification
- Dimensions (H x L x W): 10mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimp verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for electrical connectors
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste.
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 35mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
