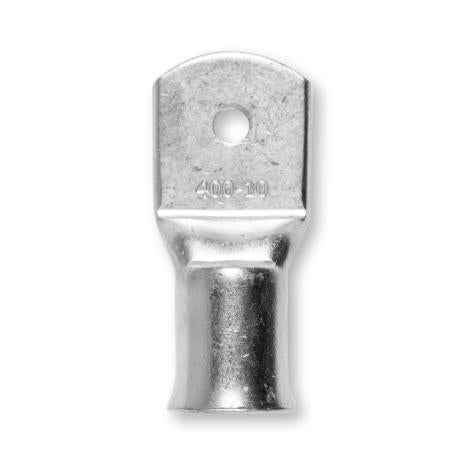

Crimp Lug Copper Bell Mouth Non-Insulated | 400mm² M10 Stud | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated is designed for reliable electrical connections, featuring a 400mm² cable size and M10 stud. Made from electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for industrial and commercial electrical installations, this lug includes an inspection hole for secure crimp verification, making it perfect for stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated | 400mm² M10 Stud | Electro Tinned Finish | Inspection Hole for Crimp Verification | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM400M10/3
Alternatively Known As: Copper Crimp Lug, Bell Mouth Copper Lug, Non-Insulated Copper Lug, Electrical Cable Lug 400mm²
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Stud Size: M10
- Cable Size: 400mm²
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Includes inspection hole for crimp verification
- Dimensions (H x L x W): 15mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs and terminals
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste.
- Durable copper material supports long-term reuse and recycling.
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 400mm² M10 Stud is available for immediate purchase, ideal for electrical and industrial cable connection applications.
