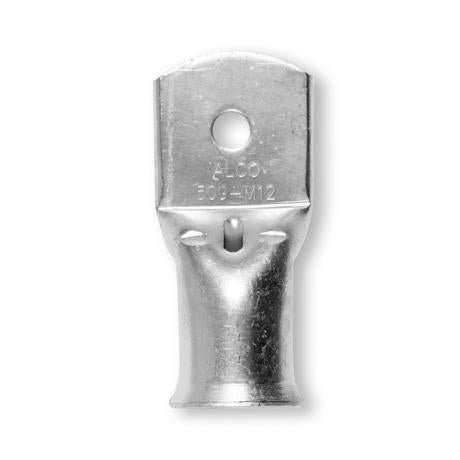

Crimp Lug Copper Bell Mouth Non-Insulated | 500mm² | M12 Stud | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated is designed for reliable electrical connections, featuring a 500mm² cable size and M12 stud compatibility. Made from electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for industrial and commercial electrical installations, this lug includes an inspection hole for secure crimp verification, making it perfect for power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated | 500mm² | M12 Stud | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM500M12/3
Alternatively Known As: Copper Crimp Lug, Bell Mouth Lug, Non-Insulated Copper Lug, 500mm² Copper Lug, M12 Stud Lug
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Stud Size: M12
- Cable Size: 500mm²
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Includes inspection hole for crimp verification
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.3 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimp verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for cable lugs and connectors
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 500mm² M12 Stud is available for immediate purchase, ideal for electrical and industrial cable connection applications.
