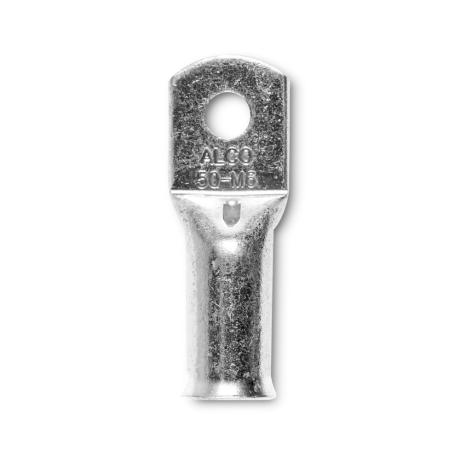

Crimp Lug Copper Bell Mouth Non-Insulated 50mm² M6 Stud | Electro Tinned Finish | Inspection Hole | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated 50mm² M6 Stud is designed for reliable electrical connections, featuring an electro tinned finish for enhanced conductivity and corrosion resistance. Ideal for industrial and commercial applications, this lug includes an inspection hole for quality assurance, ensuring a secure fit for stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated 50mm² M6 Stud | Electro Tinned Finish | Inspection Hole | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM50M6/10
Alternatively Known As: Copper Crimp Lug, Bell Mouth Copper Lug, Non-Insulated Copper Lug, 50mm² Copper Lug with M6 Stud
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Cable Size: 50mm²
- Stud Size: M6
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Includes inspection hole
- Dimensions (H x L x W): 10mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for quality assurance
- Suitable for stranded to fine stranded copper cable
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for copper cables
- Industrial and commercial electrical installations
- Suitable for stranded to fine stranded copper cable connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 50mm² M6 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
