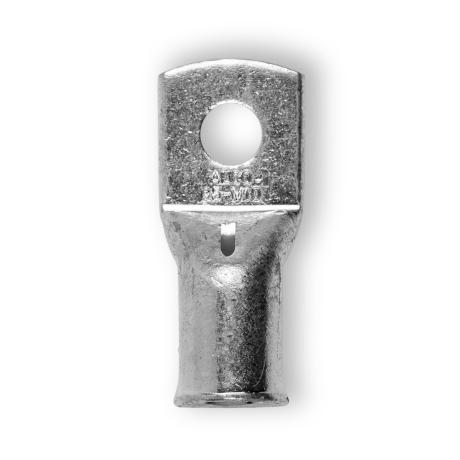

Crimp Lug Copper Bell Mouth Non-Insulated 95mm² M10 Stud | Electro Tinned Finish | Inspection Hole for Secure Connection | by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated 95mm² M10 Stud is designed for reliable electrical connections, featuring an electro tinned finish for high conductivity and an inspection hole for secure connection verification. Ideal for industrial and commercial electrical installations, this lug is perfect for stranded to fine stranded copper cables, ensuring compliance with AS/NZS 4325.1:1995 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated 95mm² M10 Stud | Electro Tinned Finish | Inspection Hole for Secure Connection | by Wattmaster
Brand: Wattmaster
SKU: ALCLBM95M10/10
Alternatively Known As: Copper Crimp Lug, Bell Mouth Lug, Non-Insulated Copper Lug, Electrical Cable Lug
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Cable Size: 95mm²
- Stud Size: M10
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Includes inspection hole
- Dimensions (H x L x W): 10mm x 80mm x 30mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure connection verification
- Suitable for stranded to fine stranded copper cable
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for cable lugs and connectors
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste.
Warranty Information
Warranty against manufacturing defects for 1 year.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 95mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
