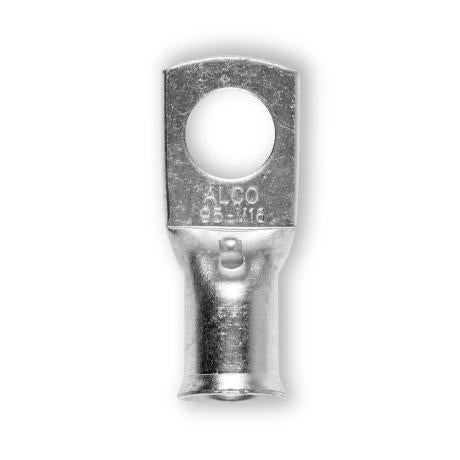

Crimp Lug Copper Bell Mouth Non-Insulated | 95mm² M16 Stud | Electro Tinned Finish | Inspection Hole | @Each by Wattmaster
The Crimp Lug Copper Bell Mouth Non-Insulated is designed for reliable electrical connections, featuring a 95mm² size and M16 stud compatibility. Made from electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for industrial and commercial electrical installations, this lug includes an inspection hole for secure crimp verification, making it perfect for stranded to fine stranded copper cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Bell Mouth Non-Insulated | 95mm² M16 Stud | Electro Tinned Finish | Inspection Hole | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLBM95M16/10
Alternatively Known As: Copper Crimp Lug, Bell Mouth Copper Lug, Non-Insulated Copper Lug, Electrical Cable Lug
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Cable Size: 95mm²
- Stud Size: M16
- Type: Non-insulated bell mouth crimp lug
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Includes inspection hole for crimp verification
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for high conductivity
- Includes inspection hole for secure crimping verification
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs
Environmental Benefits
- Electro tinned finish enhances corrosion resistance, extending product life and reducing waste
- Durable copper material supports long-term reuse and recycling
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Lug Copper Bell Mouth Non-Insulated 95mm² M16 Stud is available for immediate purchase, ideal for electrical wiring and industrial cable connection applications.
