Trade Discount 17%
Crimp Lug Copper Long Barrel 16mm² M6 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Crimp Lug Copper Long Barrel 16mm² M6 Stud is designed for reliable electrical connections, made from 99.9% electro grade copper for high conductivity. With an electro tinned finish for enhanced corrosion resistance, it's perfect for industrial and residential applications, ensuring secure connections in electrical panels and machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

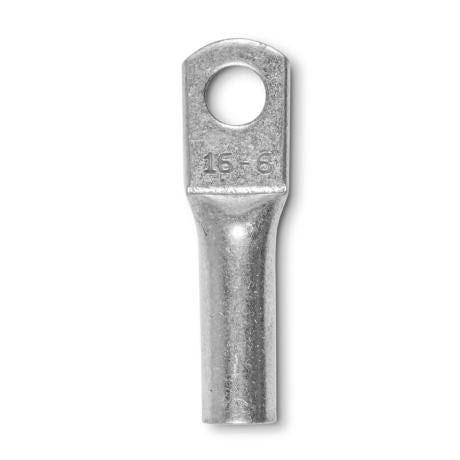

Product Name/Title: Crimp Lug Copper Long Barrel 16mm² M6 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLB16M6
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug 16mm², M6 Stud Copper Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Cable Size: 16mm²
- Stud Size: M6
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for >10mm²
- Dimensions (H x L x W): 10mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for enhanced corrosion resistance
- Made from 99.9% copper for high electrical conductivity
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes over 10mm²
- Operating temperature range from -55°C to +155°C
- Available for individual sale in all sizes
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and safe connections.
Applications
- Electrical wiring and connections for industrial and residential copper cables
- Suitable for use in electrical panels, switchboards, and machinery
- Ideal for stranded to fine-stranded copper cable terminations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical copper lugs
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 16mm² M6 Stud is available for immediate purchase, ideal for electrical wiring and connection applications.
