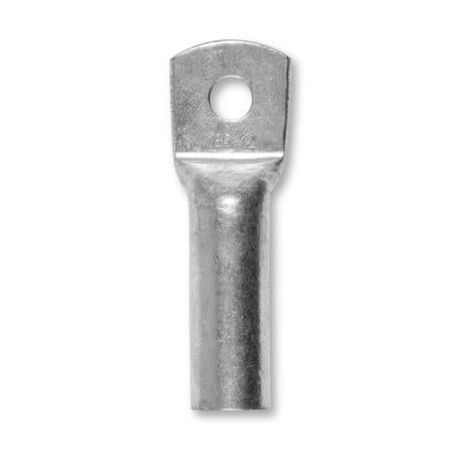

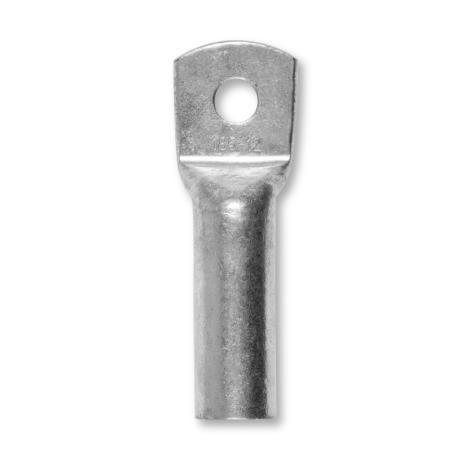

Crimp Lug Copper Long Barrel 185mm² M12 Stud | 99.9% Electro Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Lug Copper Long Barrel 185mm² M12 Stud is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial power distribution, this lug ensures secure connections for stranded to fine-stranded copper cables, making it a must-have for electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Barrel 185mm² M12 Stud | 99.9% Electro Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLLB185M12
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Cable Lug, Copper Cable Terminal
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Cable Size: 185mm²
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Operating temperature range from -55°C to +155°C
- All sizes available for individual sale
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and connections for industrial and commercial power distribution
- Suitable for use in electrical panels, switchboards, and heavy-duty cable terminations
- Ideal for stranded to fine-stranded copper cables in power systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs greater than 10mm²
Environmental Benefits
- High conductivity reduces energy loss in electrical systems, improving overall energy efficiency
- Durable electro tinned finish extends product life, reducing waste and replacement frequency
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 185mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
