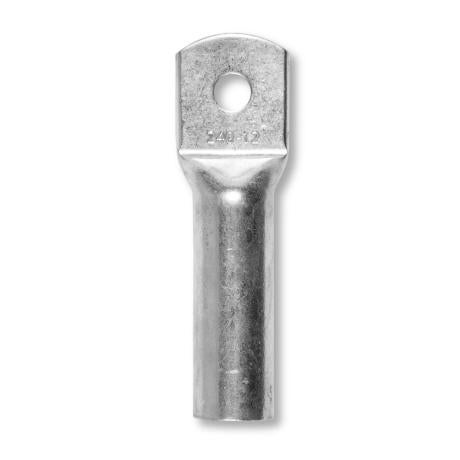

Crimp Lug Copper Long Barrel 240mm² M12 Stud | 99.9% Electro Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Lug Copper Long Barrel 240mm² M12 Stud is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial applications, this lug ensures secure connections in power distribution and grounding systems, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Barrel 240mm² M12 Stud | 99.9% Electro Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLLB240M12
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug, M12 Stud Copper Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Cable Size: 240mm²
- Stud Size: M12
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Operating temperature range from -55°C to +155°C
- Available for individual sale in all sizes
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring for industrial and commercial copper cable connections
- Suitable for use in power distribution and grounding systems
- Ideal for stranded to fine-stranded copper cables in electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for cable lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 240mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
