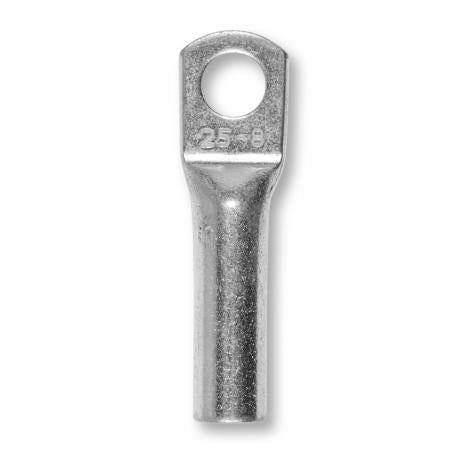

Crimp Lug Copper Long Barrel 25mm² M8 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Long Barrel 25mm² M8 Stud is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug ensures secure connections for stranded to fine-stranded copper cables, complying with AS/NZS 4325.1:1995 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Barrel 25mm² M8 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLB25M8
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Crimp Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Cable Size: 25mm²
- Stud Size: M8
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 70mm x 25mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Operating temperature range from -55°C to +155°C
- Available for individual sale in all sizes
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical copper cable lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro-tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 25mm² M8 Stud is available for immediate purchase, ideal for electrical wiring and industrial applications.
