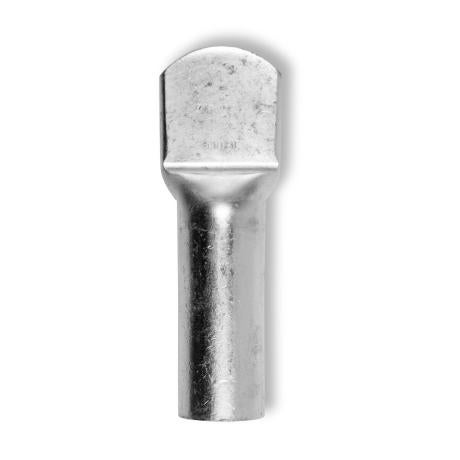

Crimp Lug Copper Long Barrel 630mm² | 99.9% Pure Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Long Barrel 630mm² is designed for high conductivity in electrical wiring, made from 99.9% pure copper and featuring an electro tinned finish for enhanced corrosion resistance. Ideal for industrial and commercial power distribution, this non-insulated crimp lug ensures secure connections and complies with AS/NZS 4325.1:1995 standards, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Barrel 630mm² | 99.9% Pure Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLB630MB
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug, Copper Cable Lug
Technical Specifications
- Material: 99.9% pure copper
- Finish: Electro tinned for corrosion resistance
- Size: 630mm²
- Type: Non-insulated crimp lug
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 150mm x 200mm x 50mm
- Weight: 0.5 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Electro tinned finish for enhanced corrosion resistance
- Made from 99.9% copper for high electrical conductivity
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
- Operating temperature range from -55°C to +155°C
- Available for individual sale in all sizes
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and cabling for industrial and commercial power distribution
- Suitable for use with stranded to fine-stranded copper cables
- Ideal for electrical installations requiring high conductivity and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- High copper purity ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Lug Copper Long Barrel 630mm² Blank Palm is available for immediate purchase, ideal for electrical wiring and power distribution applications.
