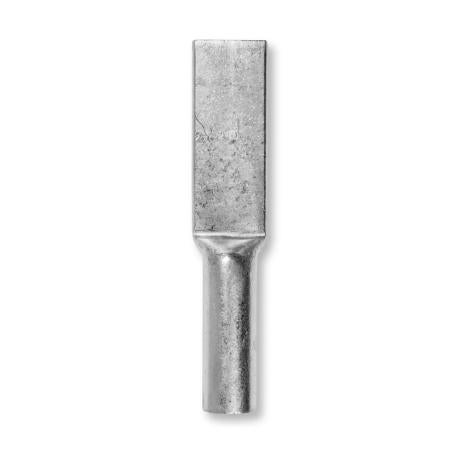

Crimp Lug Copper Long Palm Long Barrel 240mm² | Non-Insulated | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Long Palm Long Barrel 240mm² is designed for reliable electrical connections, featuring a non-insulated design and an electro tinned finish for corrosion resistance. Ideal for stranded to fine-stranded copper cables, this lug ensures high conductivity and is perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel 240mm² | Non-Insulated | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB240
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Crimp Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Type: Non-insulated crimp lug
- Cable Size: 240mm²
- Design: Long palm, long barrel, blank palm (no hole)
- Standards: Classified to IEC 61238
- Operating Temperature: -55°C to +155°C
- Includes inspection port
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classification to IEC 61238
- Operating temperature range from -55°C to +155°C
- Available for individual sale
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 240mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
