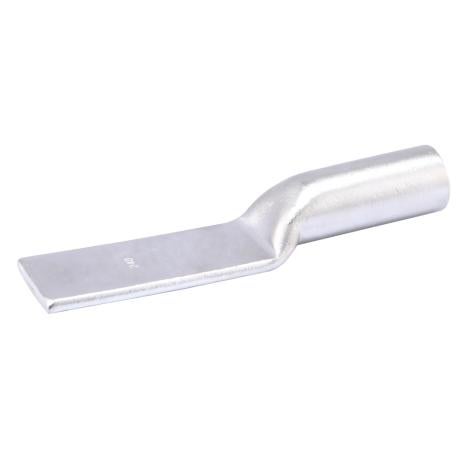

Crimp Lug Copper Long Palm Long Barrel 35mm² | Electro Tinned Finish | High Conductivity | by Wattmaster
Crimp Lug Copper Long Palm Long Barrel 35mm² is designed for reliable electrical connections, featuring a long palm and barrel design for stranded to fine-stranded copper cables. Made from 99.9% electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance, making it ideal for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel 35mm² | Electro Tinned Finish | High Conductivity | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB35
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Crimp Connector, Copper Cable Lug
Technical Specifications
- Material: Electro grade copper
- Size: 35mm²
- Finish: Electro tinned
- Palm Type: Long palm, blank with no hole
- Barrel Type: Long barrel
- Operating Temperature: -55°C to +155°C
- Standards: IEC 61238 classification
- Suitable for stranded to fine-stranded copper cable
- Dimensions (H x L x W): 10mm x 80mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classified to IEC 61238
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from 99.9% copper which is recyclable and sustainable
- Electro tinned finish extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 35mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
