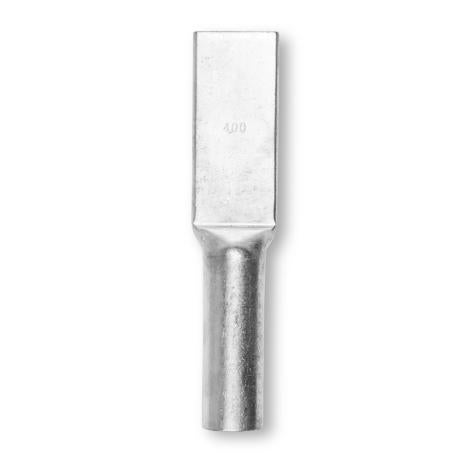

Crimp Lug Copper Long Palm Long Barrel 400mm² | Non-Insulated | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Long Palm Long Barrel 400mm² is designed for reliable electrical connections, featuring a non-insulated design and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug ensures high conductivity with 99.9% copper material, making it perfect for power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel 400mm² | Non-Insulated | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB400
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug, 400mm² Copper Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Type: Non-insulated crimp lug
- Size: 400mm²
- Design: Long palm, long barrel, blank palm (no hole)
- Operating Temperature: -55°C to +155°C
- Standards: Classified to IEC 61238
- Includes inspection port
- Dimensions (H x L x W): 120mm x 150mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classification to IEC 61238
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 400mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
