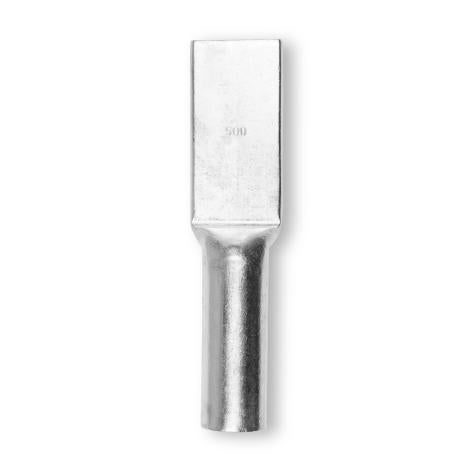

Crimp Lug Copper Long Palm Long Barrel 500mm² | 99.9% Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Long Palm Long Barrel 500mm² is designed for high conductivity and corrosion resistance, featuring 99.9% electro grade copper and an electro tinned finish. Ideal for electrical wiring in industrial and commercial applications, this non-insulated lug ensures reliable connections for stranded to fine-stranded copper cables, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel 500mm² | 99.9% Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB500
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Long Palm Copper Lug, Electrical Copper Lug 500mm²
Technical Specifications
- Material: Electro grade copper
- Copper Purity: 99.9%
- Finish: Electro tinned for corrosion resistance
- Suitable Cable Type: Stranded to fine-stranded copper cable
- Operating Temperature: -55°C to +155°C
- Standard Compliance: IEC 61238
- Design: Long barrel and long palm with blank palm (no hole)
- Includes inspection port
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classification to IEC 61238
- Operating temperature range from -55°C to +155°C
- Available for individual sale
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- High conductivity electrical connections requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from 99.9% copper, a recyclable material
- Electro tinned finish extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 500mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
