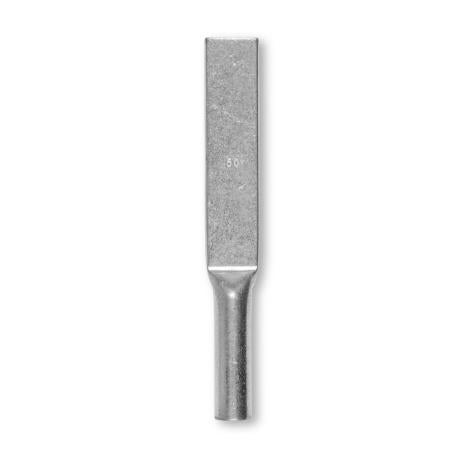

Crimp Lug Copper Long Palm Long Barrel 50mm² | Electro Tinned Finish | High Conductivity | by Wattmaster
The Crimp Lug Copper Long Palm Long Barrel 50mm² is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this non-insulated lug ensures optimal performance in power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel 50mm² | Electro Tinned Finish | High Conductivity | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB50
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Crimp Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Size: 50mm²
- Design: Long palm and long barrel
- Palm Type: Blank (no hole)
- Operating Temperature: -55°C to +155°C
- Standards: IEC 61238 classification
- Includes inspection port
- Dimensions (H x L x W): 10mm x 80mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classified to IEC 61238
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard policy.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 50mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
