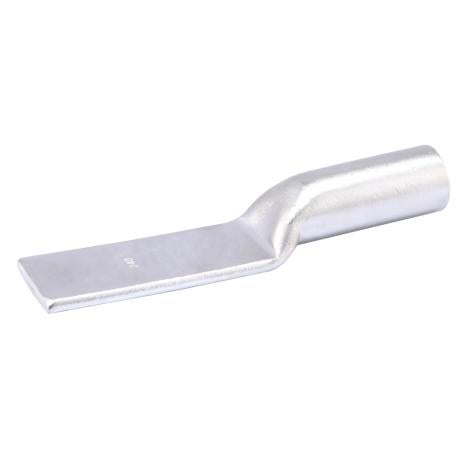

Crimp Lug Copper Long Palm Long Barrel 630mm² | 99.9% Pure Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Long Palm Long Barrel 630mm² is designed for reliable electrical connections, featuring a long barrel and palm design made from 99.9% pure copper for high conductivity. Ideal for industrial and commercial electrical installations, this non-insulated crimp lug ensures optimal performance in power distribution and grounding systems, with an electro tinned finish for enhanced corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel 630mm² | 99.9% Pure Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB630
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Cable Lug, Copper Cable Connector
Technical Specifications
- Material: 99.9% pure copper
- Finish: Electro tinned for corrosion resistance
- Type: Non-insulated crimp lug
- Palm: Long palm, blank with no hole
- Barrel: Long barrel
- Suitable for stranded to fine-stranded copper cable
- Operating temperature: -55°C to +155°C
- Standard: IEC 61238 classification
- Dimensions (H x L x W): 30mm x 200mm x 100mm
- Weight: 0.5 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classified to IEC 61238
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 630mm² Blank is available for immediate purchase, ideal for electrical and industrial cable connection applications.
