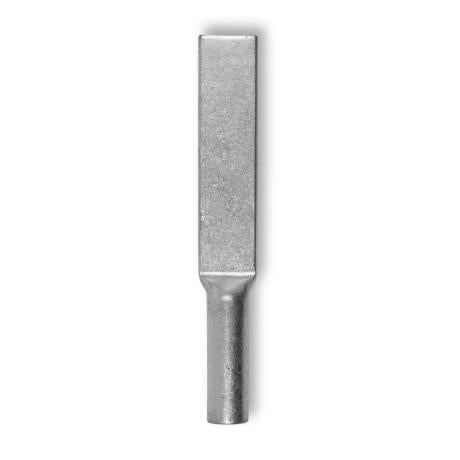

Crimp Lug Copper Long Palm Long Barrel | 95mm² Capacity | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Long Palm Long Barrel is designed for reliable electrical connections, featuring a 95mm² cable capacity and a long barrel design. Made from 99.9% electro grade copper with an electro tinned finish for corrosion resistance, it's perfect for industrial and commercial electrical installations, ensuring high conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel | 95mm² Capacity | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB95
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Crimp Terminal, Copper Cable Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Size: 95mm² cable capacity
- Design: Long palm and long barrel
- Insulation: Non-insulated
- Standards: IEC 61238 classification
- Operating Temperature: -55°C to +155°C
- Includes inspection port
- Dimensions (H x L x W): 10mm x 100mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classified to IEC 61238
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 95mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
