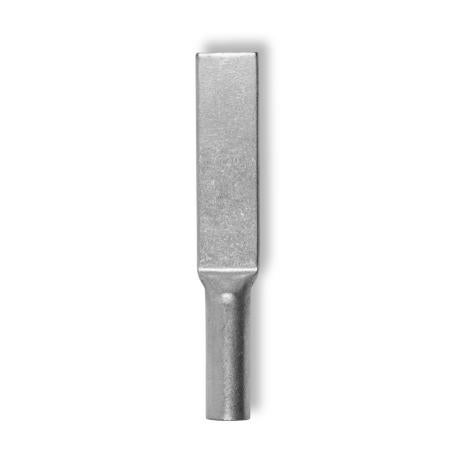

Crimp Lug Copper Long Palm Long Barrel | 99.9% Copper | Electro Tinned Finish | by Wattmaster
Crimp Lug Copper Long Palm Long Barrel is designed for reliable electrical connections, featuring 99.9% pure copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this non-insulated lug is perfect for stranded to fine-stranded copper cables, ensuring safety and performance in power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel | 99.9% Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB120
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug, Copper Cable Lug
Technical Specifications
- Material: Electro grade copper
- Copper Purity: 99.9%
- Finish: Electro tinned for corrosion resistance
- Size: 120mm²
- Design: Long palm, long barrel, blank palm (no hole)
- Operating Temperature: -55°C to +155°C
- Standards: Classified to IEC 61238
- Dimensions (H x L x W): 15mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Long barrel and long palm design
- Blank palm with no hole
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classification to IEC 61238
- Operating temperature range from -55°C to +155°C
- Available for individual sale
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from 99.9% copper, a recyclable material
- Electro tinned finish extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wattmaster Crimp Lug Copper Long Palm Long Barrel 120mm² Blank is available for immediate purchase, ideal for electrical wiring and industrial applications.
