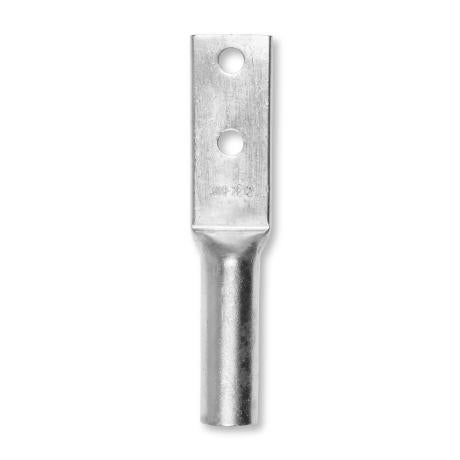

Crimp Lug Copper Long Palm Long Barrel | 99.9% Electro Grade Copper | Electro Tinned Finish | 2x 12mm Stud | by Wattmaster
Crimp Lug Copper Long Palm Long Barrel is designed for high conductivity electrical connections, featuring 99.9% electro grade copper and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial installations, this lug supports stranded to fine-stranded copper cables, ensuring reliable performance in power distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Long Palm Long Barrel | 99.9% Electro Grade Copper | Electro Tinned Finish | 2x 12mm Stud | by Wattmaster
Brand: Wattmaster
SKU: ALCLLPB300M12X2
Alternatively Known As: Copper Crimp Lug, Long Barrel Copper Lug, Electrical Copper Lug, 300mm² Copper Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Holes: 2 x 12mm diameter
- Hole Spacing: 44.5mm
- Operating Temperature: -55°C to +155°C
- Standards: IEC 61238 classification
- Includes inspection port
- Dimensions (H x L x W): 20mm x 120mm x 50mm
- Weight: 0.3 kg
Key Features
- Non–insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Long barrel and long palm design
- Palm with 2 holes 12mm diameter at 44.5mm spacing
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Classification to IEC 61238
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical installations
- High conductivity power distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
Available for immediate purchase, ideal for electrical and industrial cable connection applications.
