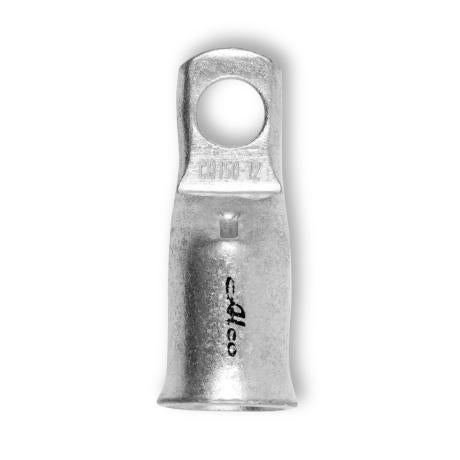

Crimp Lug Copper Narrow Palm | 150mm² M12 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for secure electrical connections, featuring a 150mm² cable size and M12 stud compatibility. Made from 99.9% electro grade copper with an electro tinned finish for corrosion resistance, this lug is perfect for modular circuit breaker applications and industrial wiring. Ensure reliable performance with its high conductivity and included inspection port for easy verification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 150mm² M12 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLCB150M12
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Copper Cable Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 150mm²
- Operating Temperature Range: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Includes inspection port
- Dimensions (H x L x W): 10mm x 150mm x 40mm
- Weight: 0.1 kg
Key Features
- Non–insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Narrow palm design to suit modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- Includes inspection port for easy verification
- High conductivity with 99.9% copper content
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure connections.
Applications
- Electrical installations requiring secure cable connections
- Modular circuit breaker connections
- Industrial and commercial electrical wiring
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 150mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
