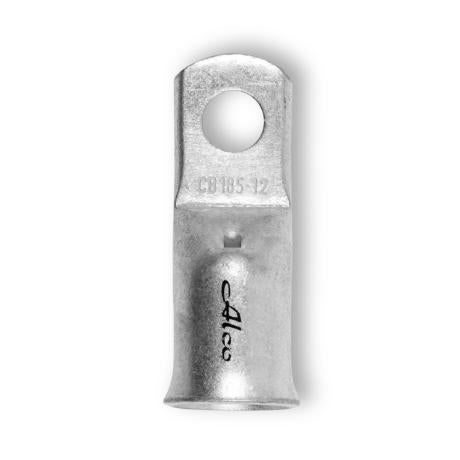

Crimp Lug Copper Narrow Palm | 185mm² M12 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for circuit breaker applications, this non-insulated lug ensures secure connections in industrial and commercial installations, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 185mm² M12 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLCB185M12
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Copper Electrical Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M12
- Cable Size: 185mm²
- Operating Temperature: -55°C to +155°C
- Non-insulated
- Includes inspection port
- Dimensions (H x L x W): 10mm x 185mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for circuit breakers
- Industrial and commercial electrical installations
- Suitable for stranded to fine-stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 185mm² M12 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
