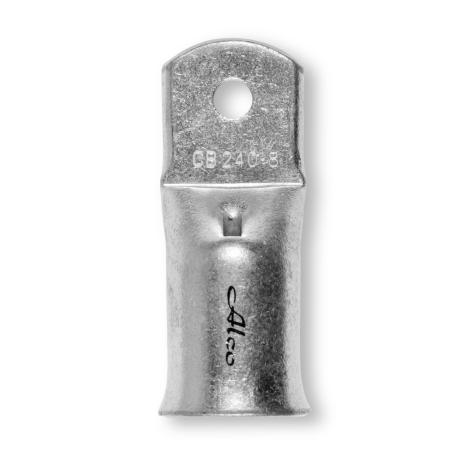

Crimp Lug Copper Narrow Palm | 240mm² M8 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for secure electrical connections, featuring a 240mm² size and M8 stud compatibility. Made from 99.9% copper with an electro tinned finish, it ensures high conductivity and corrosion resistance, making it ideal for circuit breaker applications in industrial and commercial settings. Perfect for qualified electricians looking for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 240mm² M8 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLCB240M8
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Copper Electrical Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Stud Size: M8
- Cable Size: 240mm²
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Includes inspection port for secure connections
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for circuit breakers
- Industrial and commercial electrical installations
- Suitable for stranded to fine-stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 240mm² M8 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
