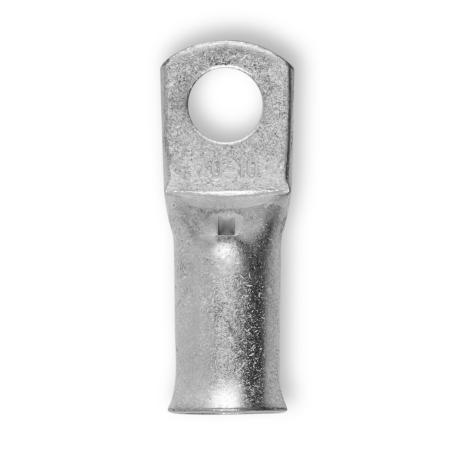

Crimp Lug Copper Narrow Palm | 70mm² M10 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for reliable electrical connections, featuring a 70mm² size and M10 stud for modular circuit breakers. Made from 99.9% electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance. Ideal for both industrial and residential electrical installations, this lug includes an inspection port for easy maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 70mm² M10 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLCB70M10
Alternatively Known As: Copper Circuit Breaker Lug, Narrow Palm Crimp Lug, Copper Electrical Lug 70mm²
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M10
- Cable Size: 70mm²
- Operating Temperature: -55°C to +155°C
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 5mm x 70mm x 25mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for circuit breakers
- Industrial and residential electrical installations
- Suitable for stranded to fine-stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical copper lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 70mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
