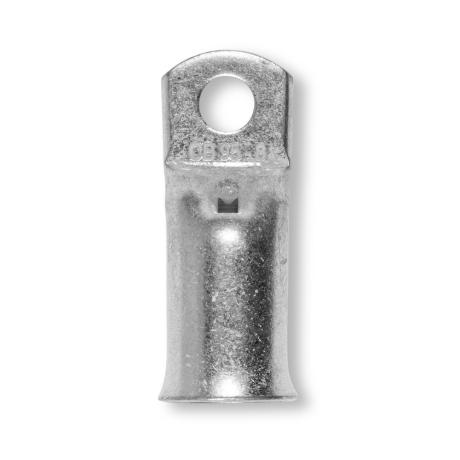

Crimp Lug Copper Narrow Palm | 95mm² M8 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for reliable electrical connections, featuring a 95mm² size and M8 stud for modular circuit breakers. Made from 99.9% electro grade copper with an electro tinned finish, it ensures high conductivity and corrosion resistance, making it ideal for residential, commercial, and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 95mm² M8 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLCB95M8
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Electrical Crimp Connector
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M8
- Cable Size: 95mm²
- Operating Temperature: -55°C to +155°C
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 95mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring connections for circuit breakers
- Suitable for stranded to fine-stranded copper cables
- Used in residential, commercial, and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty as per manufacturer’s standard terms and conditions.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 95mm² M8 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
