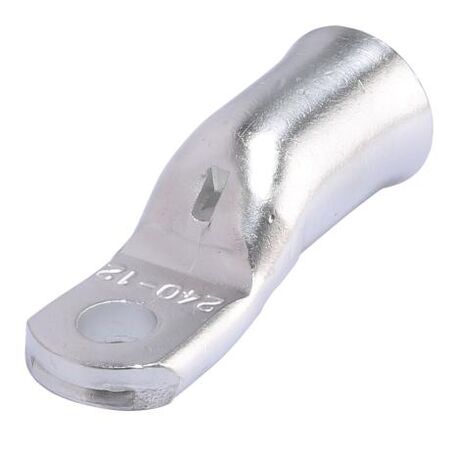

Crimp Lug Copper Narrow Palm | 99.9% Copper | Electro Tinned Finish | M10 Stud | by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for secure electrical connections, featuring 99.9% copper construction and an electro tinned finish for corrosion resistance. Ideal for modular circuit breaker connections and industrial wiring, this lug ensures high conductivity and compliance with AS/NZS standards, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 99.9% Copper | Electro Tinned Finish | M10 Stud | by Wattmaster
Brand: Wattmaster
SKU: ALCLCB150M10
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Electrical Cable Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Suitable for stranded to fine-stranded copper cable
- Operating temperature range: -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Includes inspection port for secure connections
- Dimensions (H x L x W): 10mm x 150mm x 40mm
- Weight: 0.1 kg
Key Features
- Non–insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
- Narrow palm design to suit modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical installations requiring secure cable connections
- Modular circuit breaker connections
- Industrial and commercial electrical wiring
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 150mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
