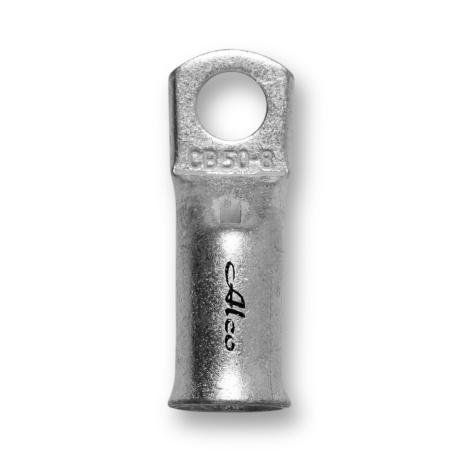

Crimp Lug Copper Narrow Palm | 99.9% Copper | Electro Tinned Finish | by Wattmaster
Crimp Lug Copper Narrow Palm is designed for secure electrical connections, featuring 99.9% copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for circuit breaker applications, this lug ensures reliable performance in industrial and commercial electrical installations, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 99.9% Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLCB50M8
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Copper Cable Lug
Technical Specifications
- Material: 99.9% copper with electro tinned finish
- Suitable for stranded to fine-stranded copper cable
- Operating temperature range: -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Includes inspection port for secure connection verification
- Dimensions (H x L x W): 5mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for circuit breakers
- Industrial and commercial electrical installations
- Stranded to fine-stranded copper cable terminations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimped cable lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty as per manufacturer’s standard terms and conditions.
Available Now
Available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
