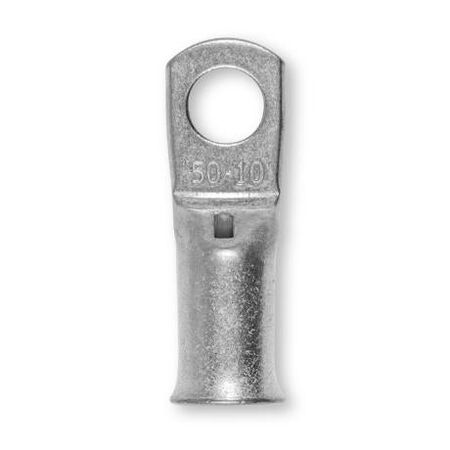

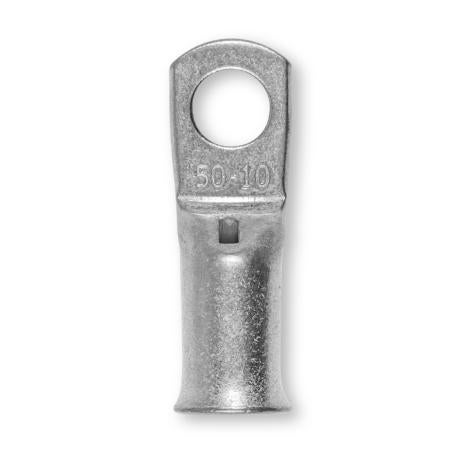

Crimp Lug Copper Narrow Palm | 99.9% Electro Grade Copper | M10 Stud | Electro Tinned Finish | by Wattmaster
Crimp Lug Copper Narrow Palm is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for circuit breaker applications, this lug ensures secure connections in both industrial and residential installations, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 99.9% Electro Grade Copper | M10 Stud | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCLCB50M10
Alternatively Known As: Copper Circuit Breaker Lug, Narrow Palm Crimp Lug, Copper Electrical Lug 50mm²
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M10
- Cable Size: 50mm²
- Operating Temperature Range: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Includes inspection port
- Dimensions (H x L x W): 5mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for circuit breakers
- Industrial and residential electrical installations
- Suitable for stranded to fine-stranded copper cables
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical copper lugs
Environmental Benefits
- High conductivity reduces energy loss in electrical connections
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for details.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 50mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
