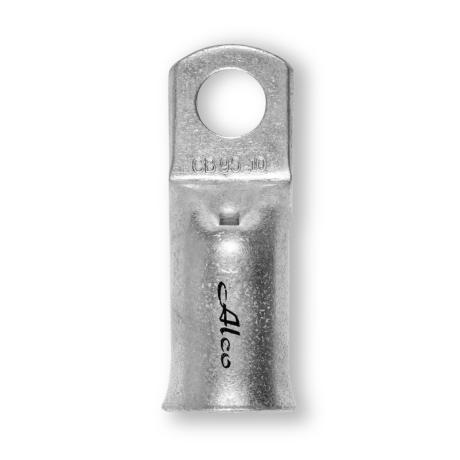

Crimp Lug Copper Narrow Palm | 99.9% Electro Grade Copper | M10 Stud | Corrosion Resistant | by Wattmaster
The Crimp Lug Copper Narrow Palm is designed for secure electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for circuit breaker applications, this lug ensures reliable performance in electrical panels and switchboards, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 99.9% Electro Grade Copper | M10 Stud | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLCB95M10
Alternatively Known As: Copper Circuit Breaker Lug, Narrow Palm Crimp Lug, Copper Electrical Lug 95mm²
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M10
- Cable Size: 95mm²
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Dimensions (H x L x W): 10mm x 95mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring connections for circuit breakers
- Suitable for stranded to fine-stranded copper cables
- Used in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical lugs
Environmental Benefits
- Made from recyclable copper material
- Durable design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Narrow Palm 95mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
