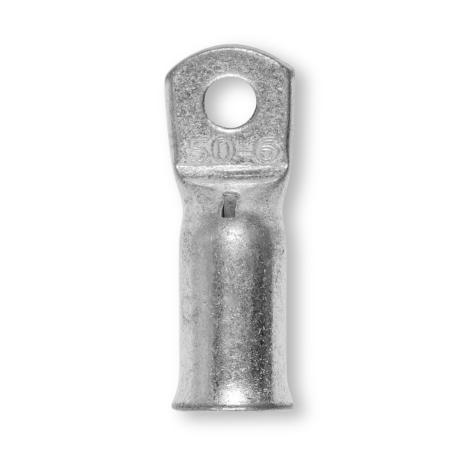

Crimp Lug Copper Narrow Palm | 99.9% Electro Grade Copper | M6 Stud | Corrosion Resistant | by Wattmaster
Crimp Lug Copper Narrow Palm is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for circuit breaker applications, this lug ensures secure connections in both industrial and residential installations, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Narrow Palm | 99.9% Electro Grade Copper | M6 Stud | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLCB50M6
Alternatively Known As: Copper Crimp Lug, Circuit Breaker Lug, Narrow Palm Lug, Copper Cable Lug 50mm²
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M6
- Cable Size: 50mm²
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 5mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Non-insulated electro grade copper crimp lugs
- Narrow palm design for modular circuit breakers or narrow connections
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port for secure connections
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring connections for circuit breakers
- Stranded to fine-stranded copper cable terminations
- Industrial and residential electrical installations requiring narrow palm lugs
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High conductivity reduces energy loss in electrical systems
- Durable electro tinned finish extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
Available for immediate purchase, ideal for electrical wiring and circuit breaker connections.
