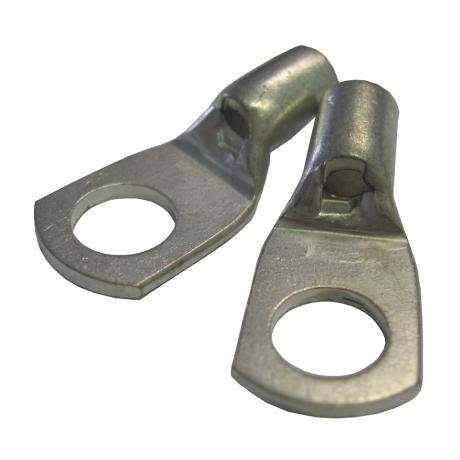

Crimp Lug Copper Standard Non Insulated 10mm² M5 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Crimp Lug Copper Standard Non Insulated 10mm² M5 Stud is designed for reliable electrical connections, featuring 99.9% electro grade copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for residential, commercial, and industrial wiring applications, this lug ensures secure connections with stranded to fine stranded copper cables, making it perfect for electrical panel wiring and grounding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 10mm² M5 Stud | 99.9% Electro Grade Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCL10M5/25
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, 10mm² Copper Lug with M5 Stud
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M5
- Cable Size: 10mm²
- Operating Temperature: –55°C to +155°C
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical wiring and connections in residential, commercial, and industrial installations
- Suitable for use with stranded to fine stranded copper cables
- Ideal for electrical panel wiring, grounding, and bonding applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs >10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
Wattmaster Crimp Lug Copper Standard Non Insulated 10mm² M5 Stud is available for immediate purchase, ideal for electrical wiring and grounding applications.
