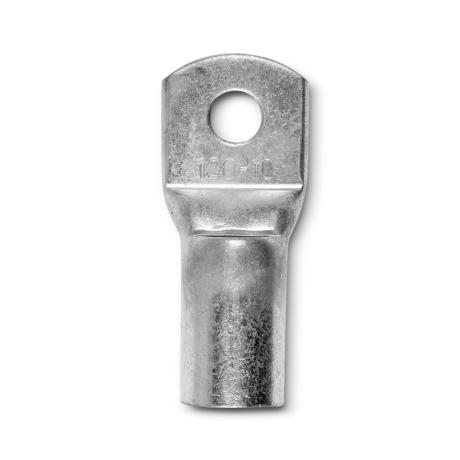

Crimp Lug Copper Standard Non Insulated | 120mm² M10 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
The Crimp Lug Copper Standard Non Insulated is designed for reliable electrical connections, featuring 99.9% electro grade copper and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial electrical installations, this lug supports stranded to fine stranded copper cables and operates within a temperature range of –55°C to +155°C, ensuring durability and high conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated | 120mm² M10 Stud | Electro Tinned Finish | High Conductivity | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCL120M10/10
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, 120mm² Copper Lug, M10 Stud Copper Lug
Technical Specifications
- Material: 99.9% Electro grade copper
- Finish: Electro tinned for corrosion resistance
- Stud Size: M10
- Cable Size: 120mm²
- Operating Temperature: –55°C to +155°C
- Suitable for stranded to fine stranded copper cable
- Includes inspection port
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 30mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring connections for stranded to fine stranded copper cables
- Industrial and commercial electrical installations
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable lugs greater than 10mm²
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 120mm² M10 Stud is available for immediate purchase, ideal for electrical wiring and power distribution applications.
