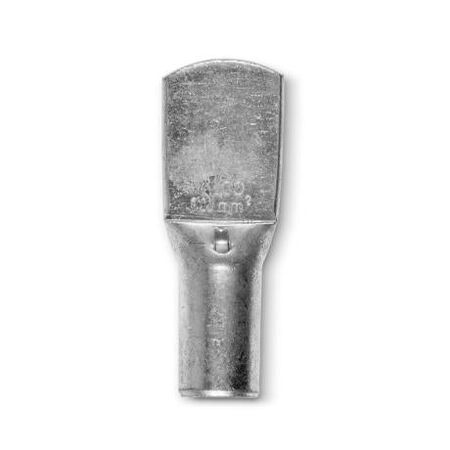

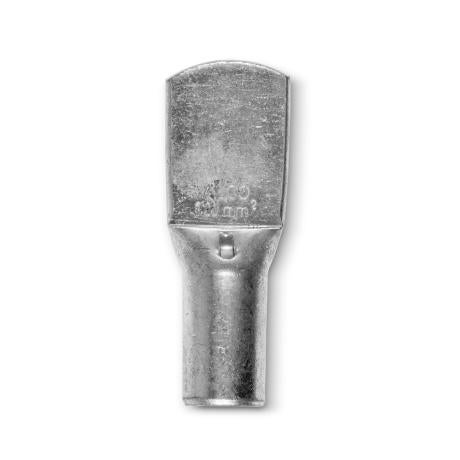

Crimp Lug Copper Standard Non Insulated 120mm² | 99.9% Pure Copper | Electro Tinned Finish | by Wattmaster
The Crimp Lug Copper Standard Non Insulated 120mm² is designed for reliable electrical connections, featuring 99.9% pure copper for high conductivity and an electro tinned finish for corrosion resistance. Ideal for industrial and commercial wiring applications, this lug ensures secure connections for stranded to fine stranded copper cables, making it perfect for power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Copper Standard Non Insulated 120mm² | 99.9% Pure Copper | Electro Tinned Finish | by Wattmaster
Brand: Wattmaster
SKU: ALCL120MB/10
Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, Standard Copper Crimp Terminal, Electrical Copper Lug
Technical Specifications
- Material: 99.9% pure copper
- Finish: Electro tinned for corrosion resistance
- Type: Non-insulated crimp lug
- Cable Size: 120mm²
- Operating Temperature: –55°C to +155°C
- Includes inspection port
- Suitable for stranded to fine stranded copper cable
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Non–insulated electro grade copper crimp lugs
- Electro tinned finish for corrosion resistance
- 99.9% copper for high conductivity
- Includes inspection port
- Independently tested and conforms to Australian Standards
- Operating temperature range from –55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical wiring and connections in industrial and commercial installations
- Suitable for stranded to fine stranded copper cables
- Used in power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for crimped cable lugs (>10mm²)
Environmental Benefits
- High purity copper ensures efficient electrical conductivity reducing energy loss
- Durable electro tinned finish extends product life reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Lug Copper Standard Non Insulated 120mm² Blank is available for immediate purchase, ideal for electrical wiring and power distribution applications.
