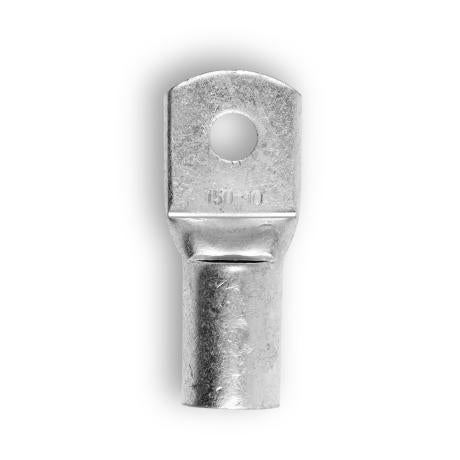

Crimp Lug Copper Standard Non Insulated | 150mm² Cable Size | M10 Stud | Electro Tinned Finish | by Wattmaster

BRAND: Wattmaster
SKU: ALCL150M10/10
$11.90 List price: $14.40
+ −
30 Days Return Delivery Options
Crimp Lug Copper Standard Non Insulated is designed for reliable electrical connections, featuring a 150mm² cable size and M10 stud. Made from 99.9% electro grade copper with an electro tinned finish for corrosion resistance, it's perfect for industrial and commercial electrical installations, ensuring high conductivity and durability.

Product Name/Title: Crimp Lug Copper Standard Non Insulated | 150mm² Cable Size | M10 Stud | Electro Tinned Finish | by Wattmaster

Brand: Wattmaster

SKU: ALCL150M10/10

Alternatively Known As: Copper Crimp Lug, Non-Insulated Copper Lug, Electrical Copper Lug, M10 Stud Copper Lug

Technical Specifications
  • Material: 99.9% Electro grade copper
  • Finish: Electro tinned for corrosion resistance
  • Stud Size: M10
  • Cable Size: 150mm²
  • Operating Temperature: –55°C to +155°C
  • Includes inspection port
  • Suitable for stranded to fine stranded copper cable
  • Dimensions (H x L x W): 10mm x 100mm x 40mm
  • Weight: 0.15 kg
Key Features
  • Non–insulated electro grade copper crimp lugs
  • Electro tinned finish for corrosion resistance
  • 99.9% copper for high conductivity
  • Includes inspection port
  • Independently tested and conforms to Australian Standards
  • Operating temperature range from –55°C to +155°C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
  • Electrical wiring connections for stranded to fine stranded copper cables
  • Industrial and commercial electrical installations
  • Power distribution and grounding systems
Standards & Compliance
  • Complies with AS/NZS 4325.1:1995 (cl7) for crimp lugs >10mm²
Environmental Benefits
  • High purity copper ensures efficient electrical conductivity reducing energy loss
  • Durable electro tinned finish extends product life reducing waste
Warranty Information

Warranty against manufacturing defects as per Wattmaster standard terms.

Available Now

Available for immediate purchase, ideal for electrical wiring and power distribution applications.
